Electrodynamic stability of windings.

Pressing structure consists ofthe yoke beams, fixed at the upper and lower end yokes of the magnetic system by means of halfbands, horizontal studs or other (analogous) elements. Clamping (pressing) plates (or other elements - vertical studs, yoke beams on side yokes, etc.) are employed for the tying between yoke beams being installed on the upper and lower end yokes of magnetic system.

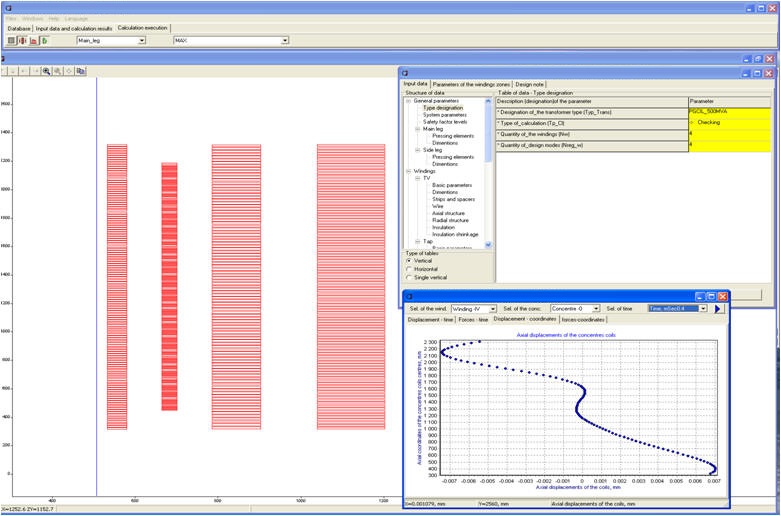

Graphical interface of a program and calculation result.
