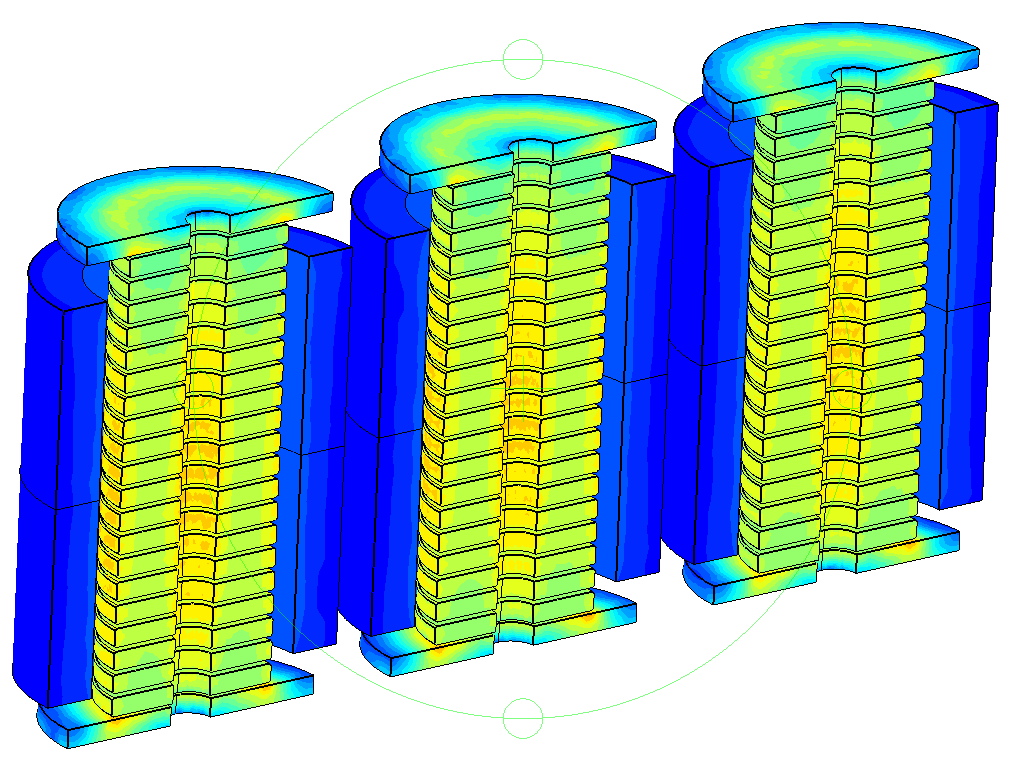

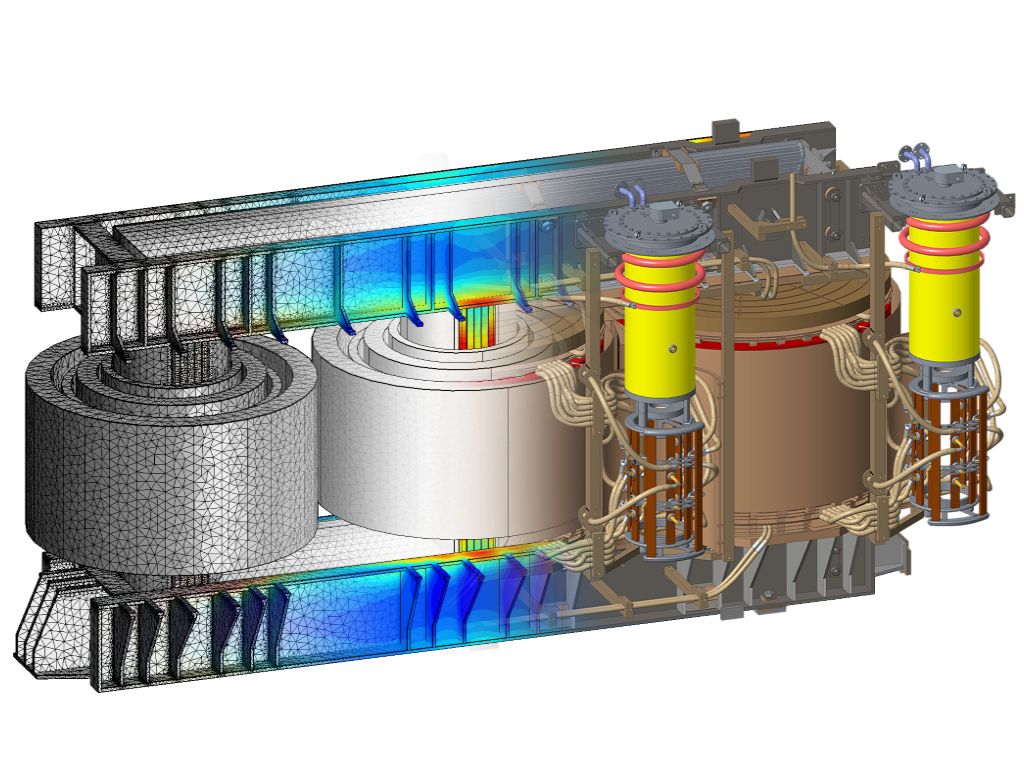

TDS is software for power transformers calculations.

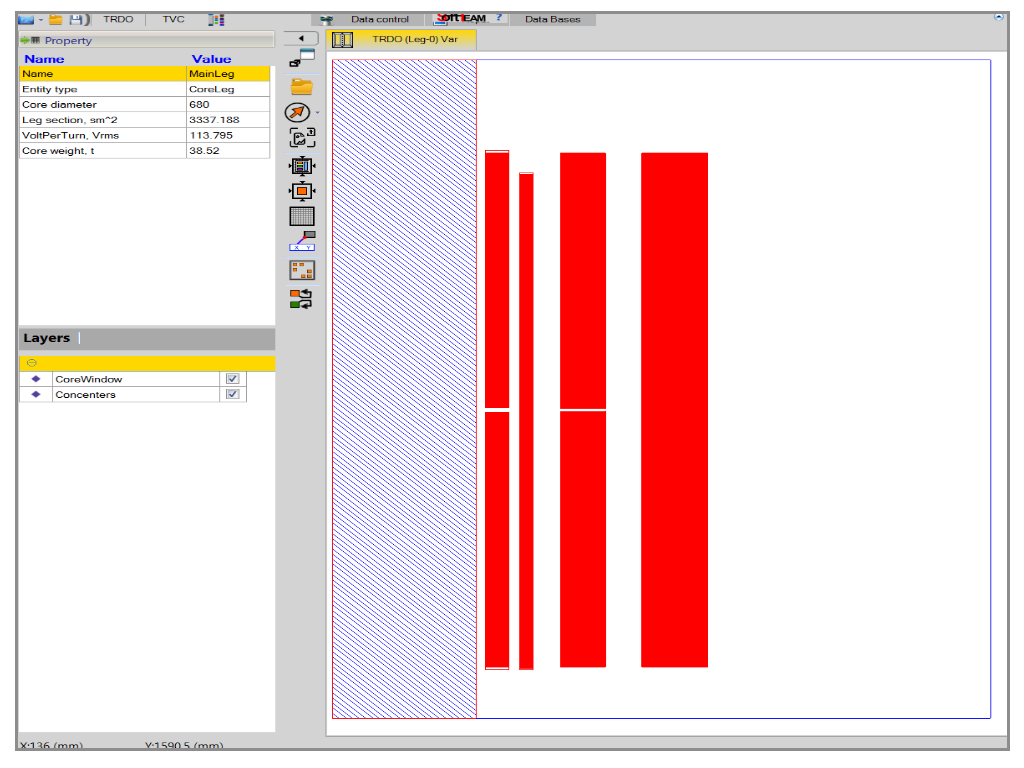

For design and calculation of 1-phase or 3-phase shunt reactors.

The software is intended for tender calculations performance.

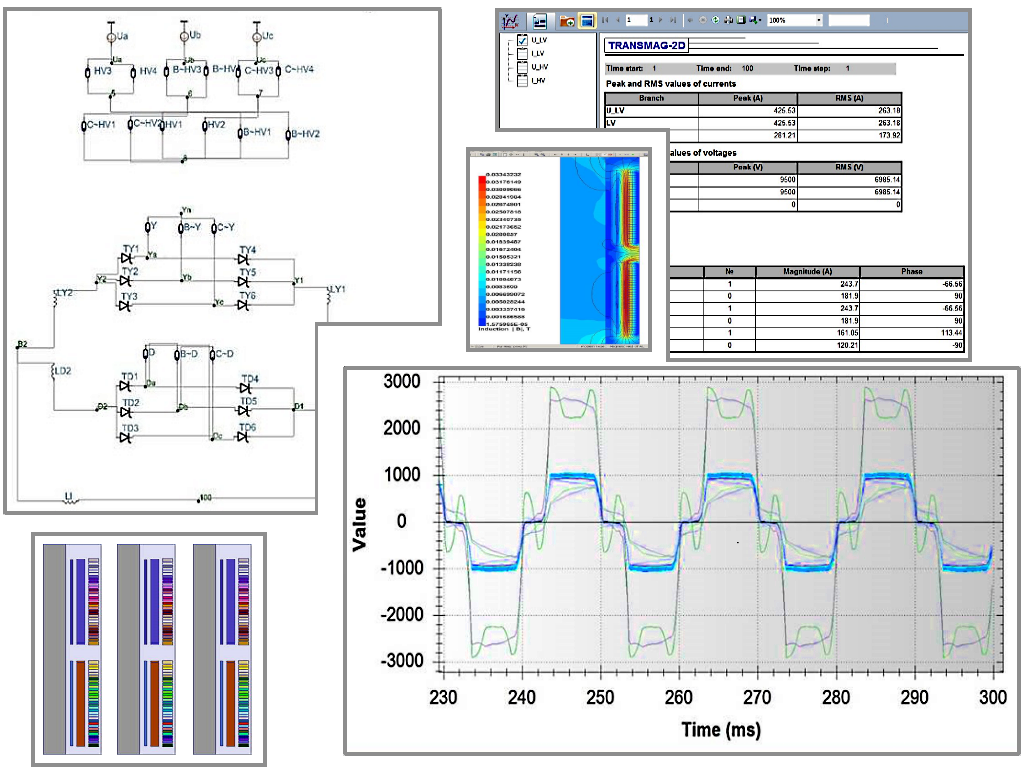

Calculation of coupled problem that consist of axisymmetrical non-linear magnetic field calculation and electrical circuit calculation.

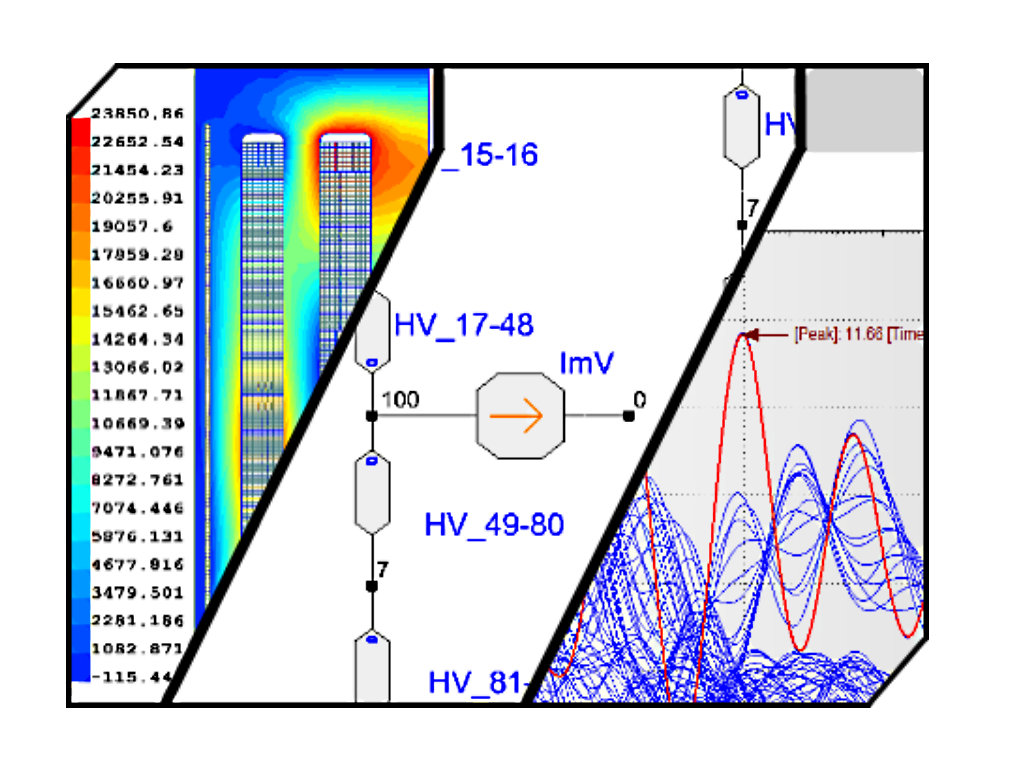

Calculation of voltage distribution inside windings insulation.

Powerful tool for calculation of HVDC transformer and reactor insulation electrical strength.

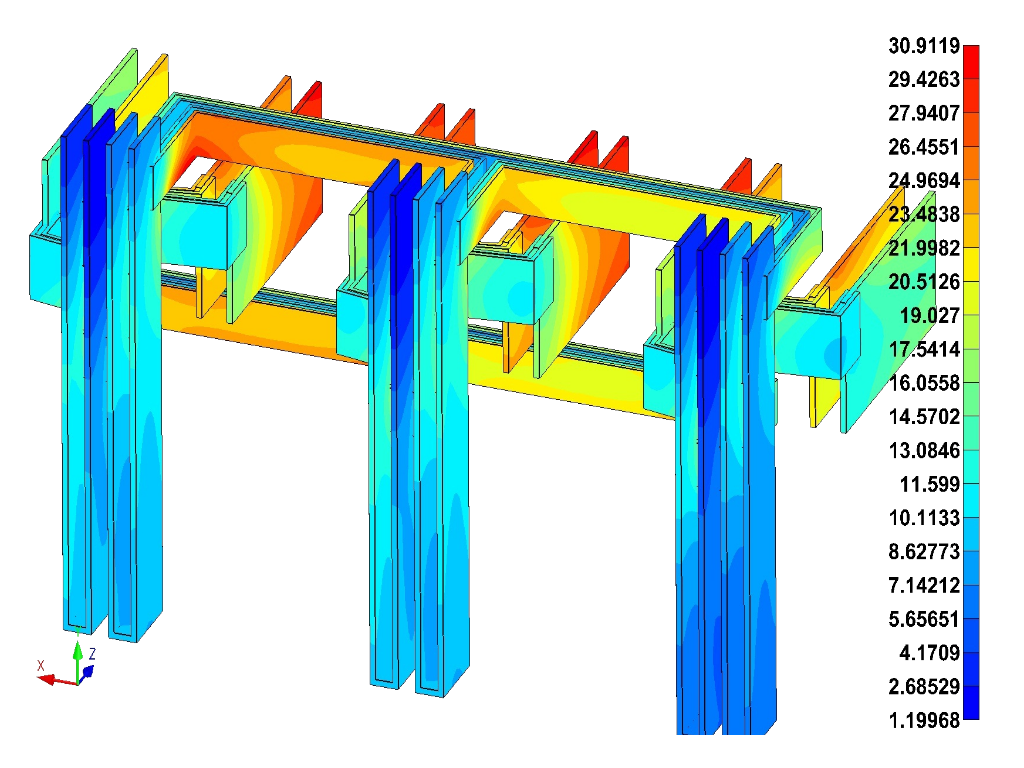

For load loss and temperature rise calculation of transformer structural elements.

The software is used for calculation of plane and axisymmetrical problems of DC magnetic field, AC magnetic field and temperature static field.

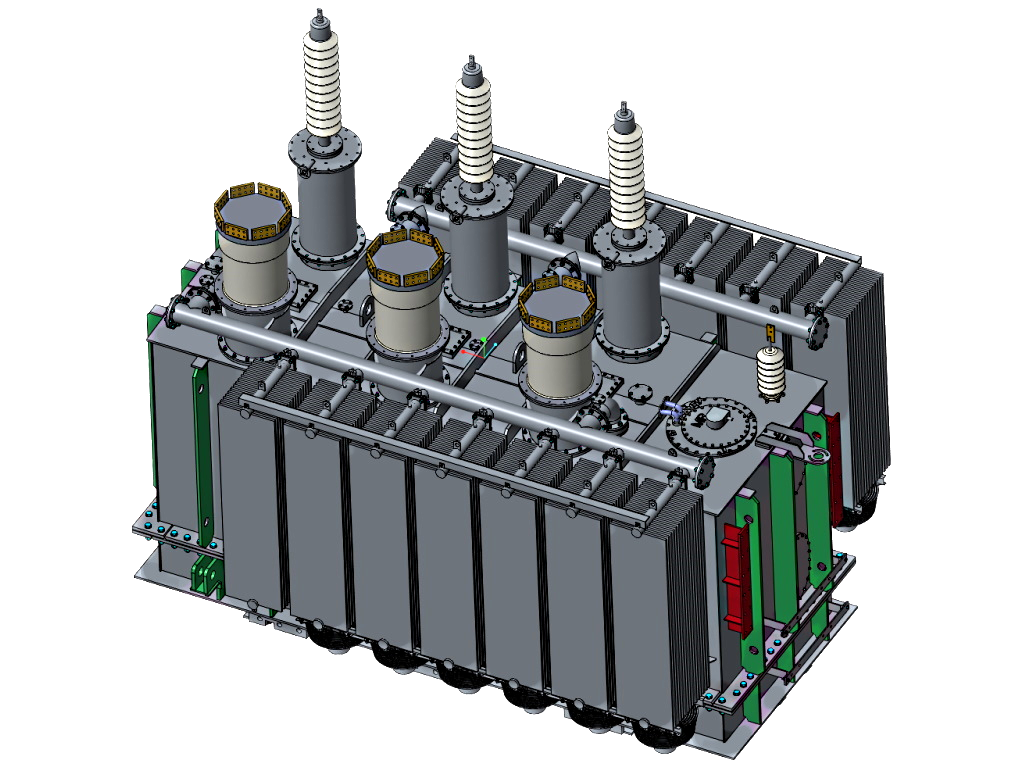

3D Build is the software for parametric modeling of transformers and reactors.

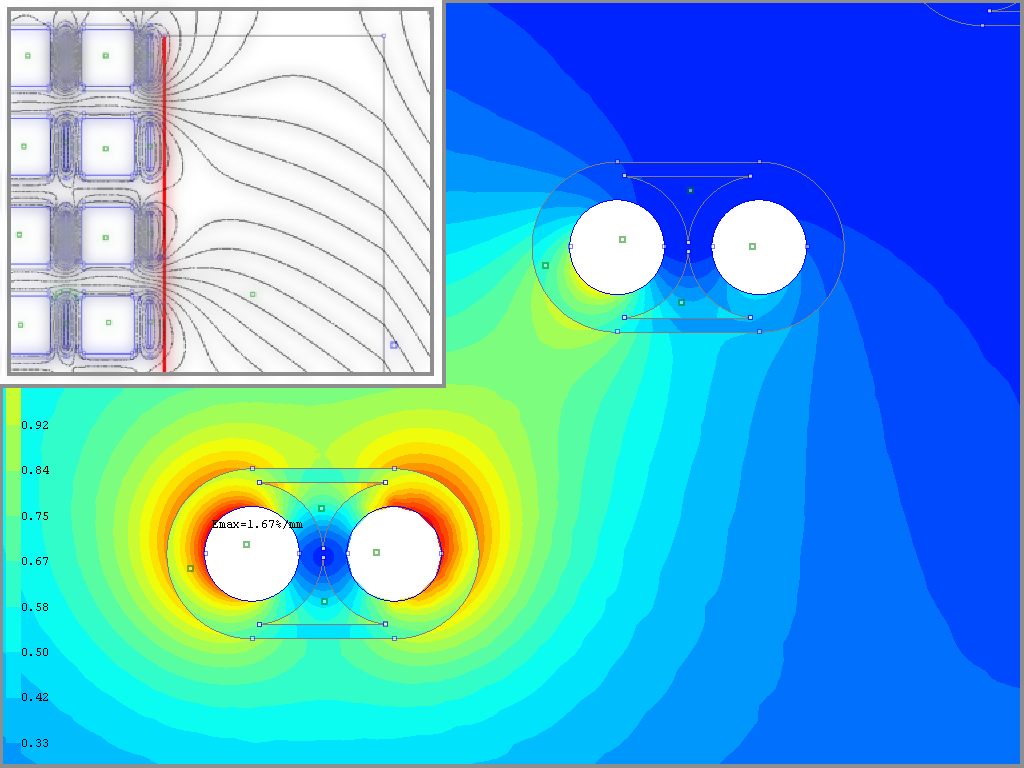

Calculation of two-dimensional plane or axisymmetric electrostatic field.

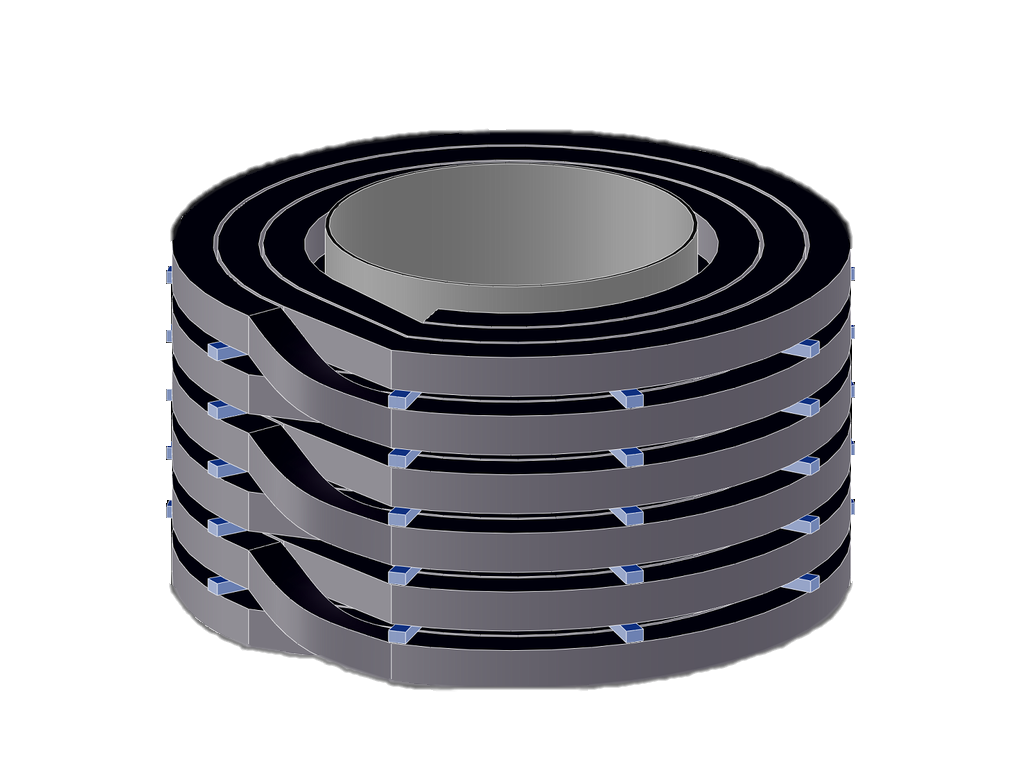

Calculation of safety factors of strength of turn insulation of power transformers and reactors.

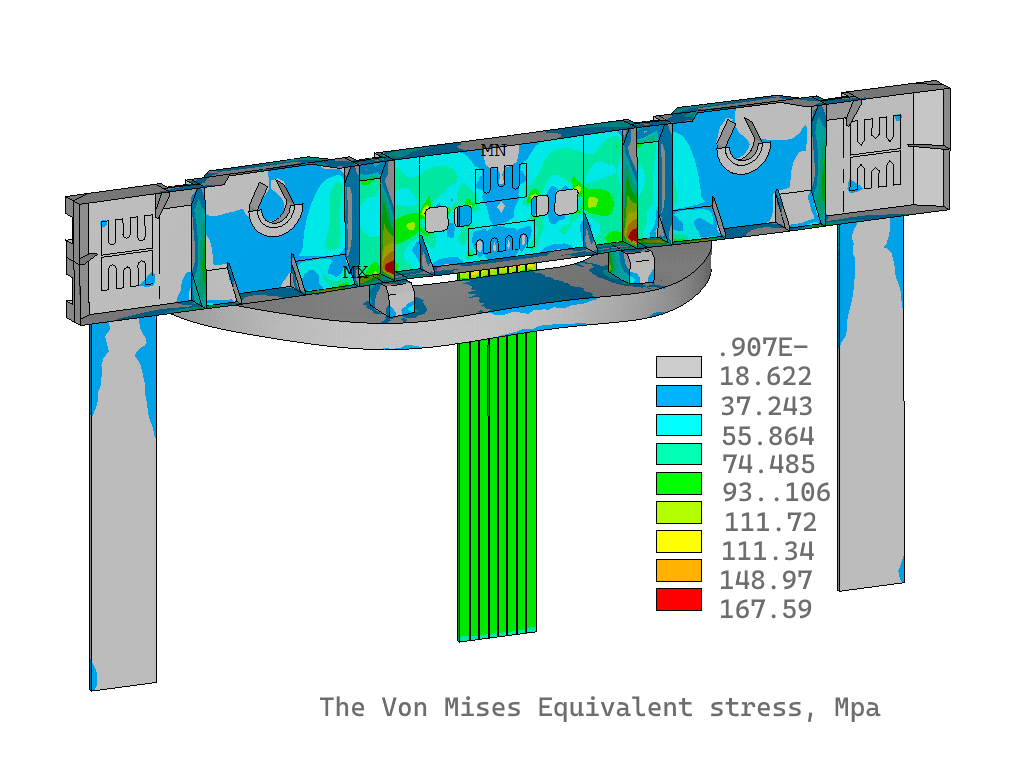

Electrodynamic stability of windings.

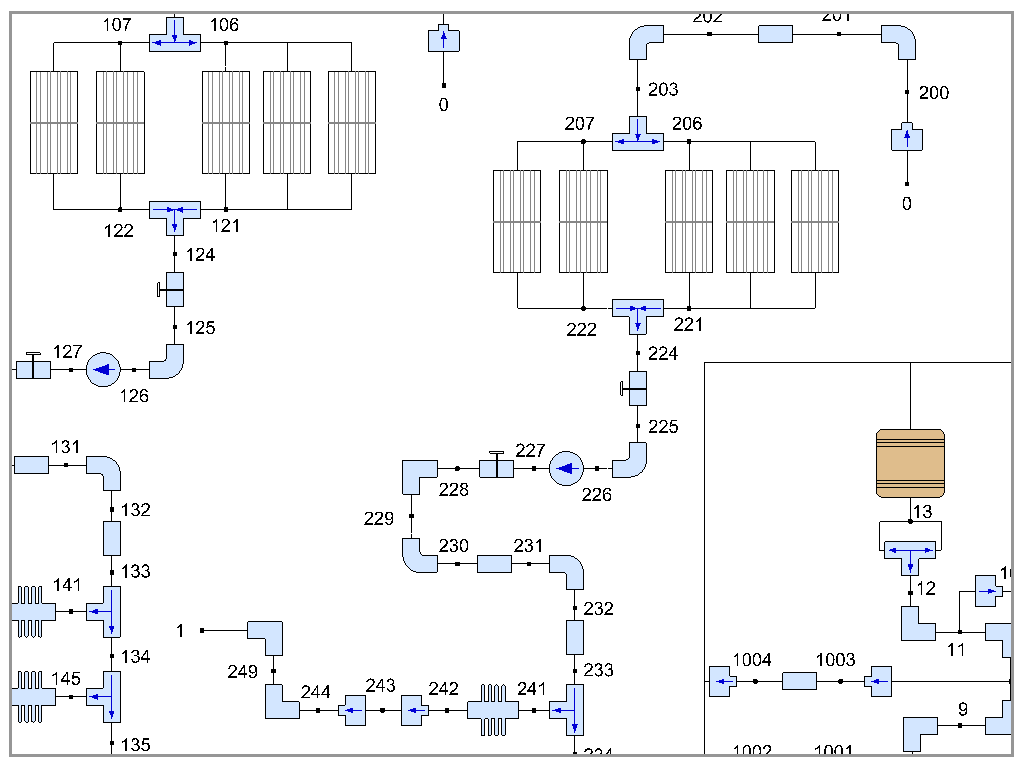

Hydraulic calculation of heating and cooling loop (OFAF and ODAF).

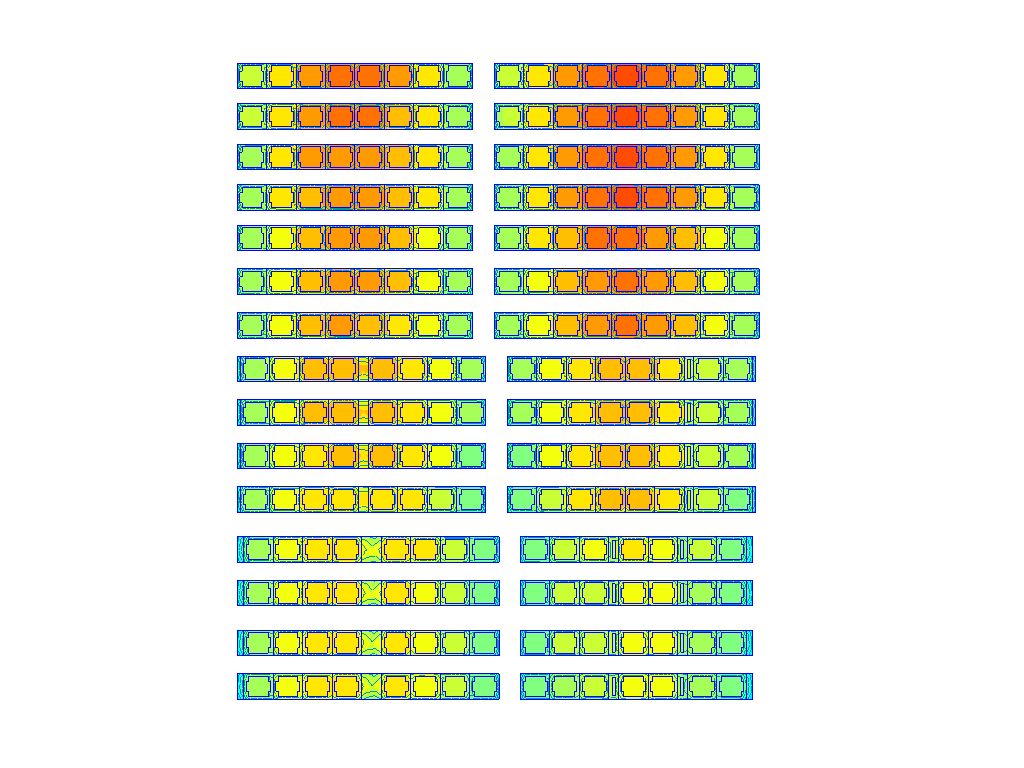

Transformer winding thermal calculation program designed to determine the temperature and position

Transformer cooling system calculation aimed to define temperature rise of top oil layers in the tank above ambient air temperature

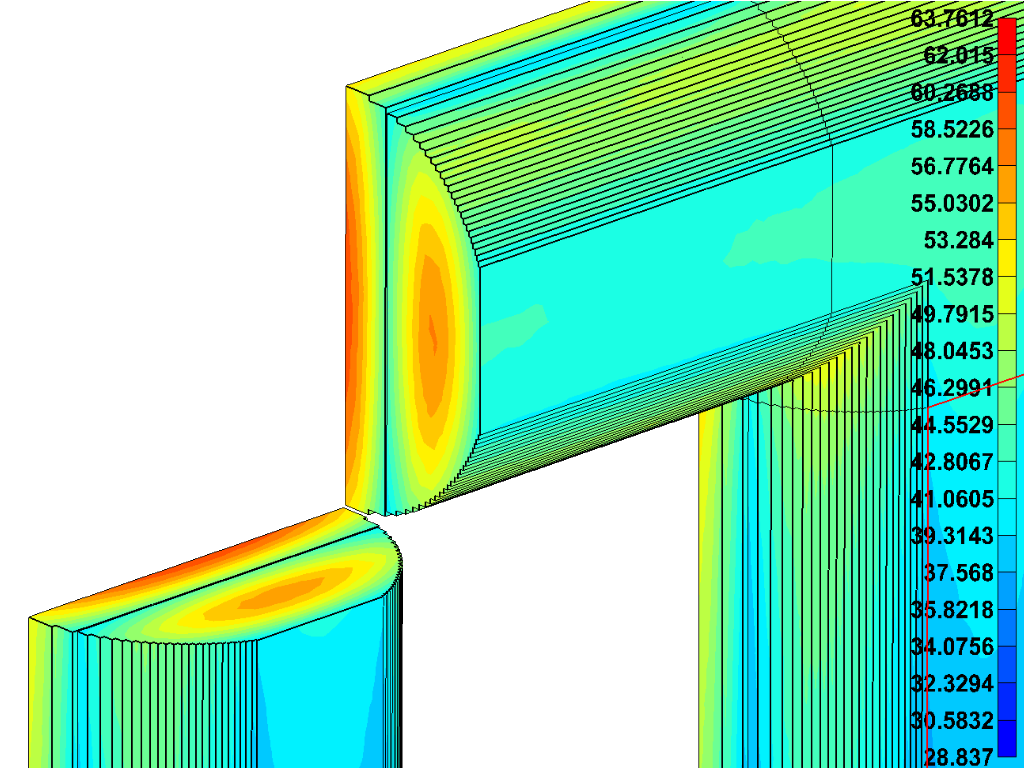

TCC is a TDS module for ELMAG-3D which does magnetic core heating calculation.

TDS module which creates special model for calculation of no-load current harmonic decomposition.

zero-sequence impedance calculation software for three phase 3/0 core type transformers (included to TDS version only, required included TRANSMAG-2D)

TDS module which creates special model for calculation of in-rush currents.

TDS module which creates special model for calculation of in-rush currents.
