Three-phase booster transformer 63 MVA 35 kV

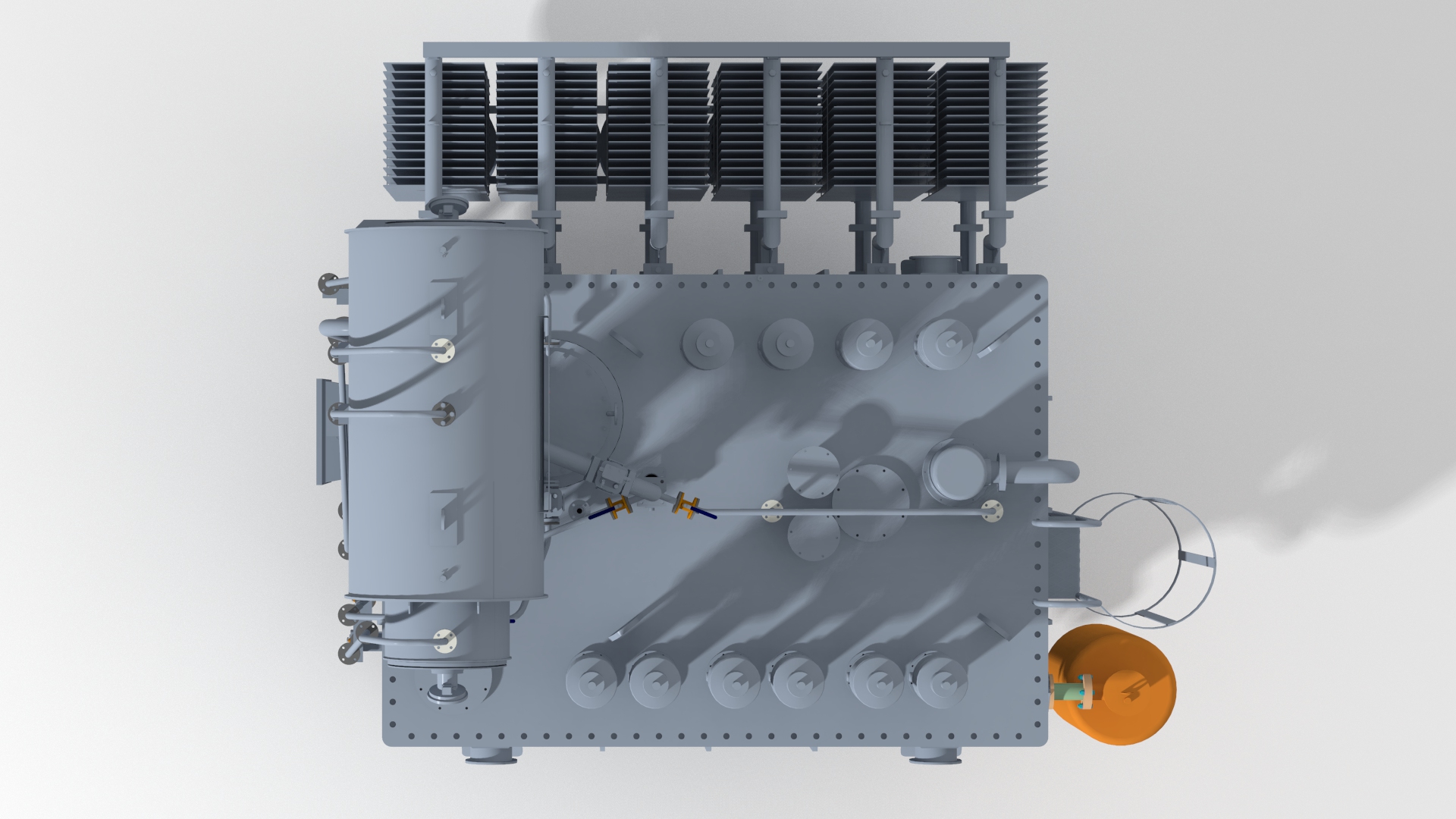

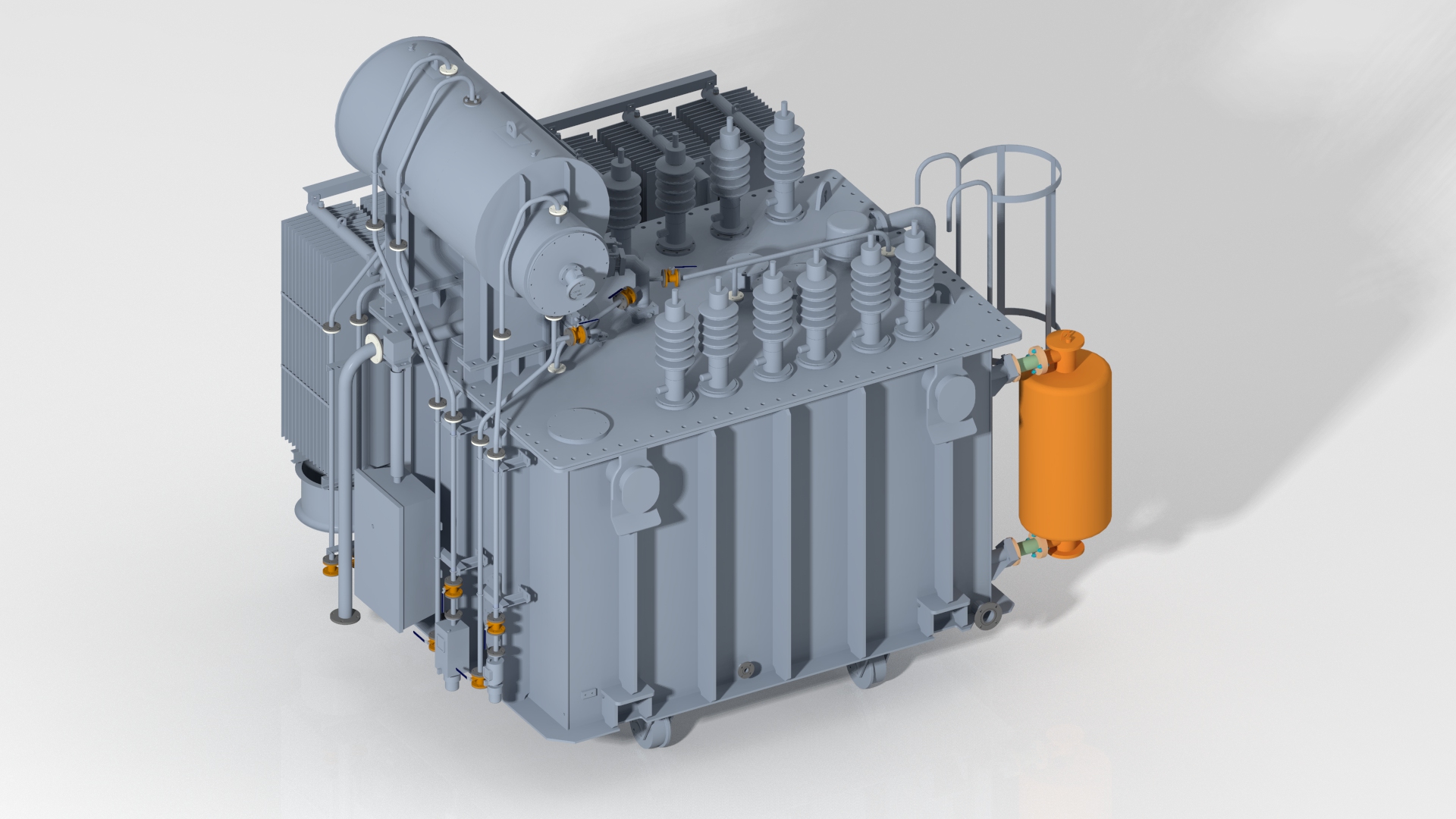

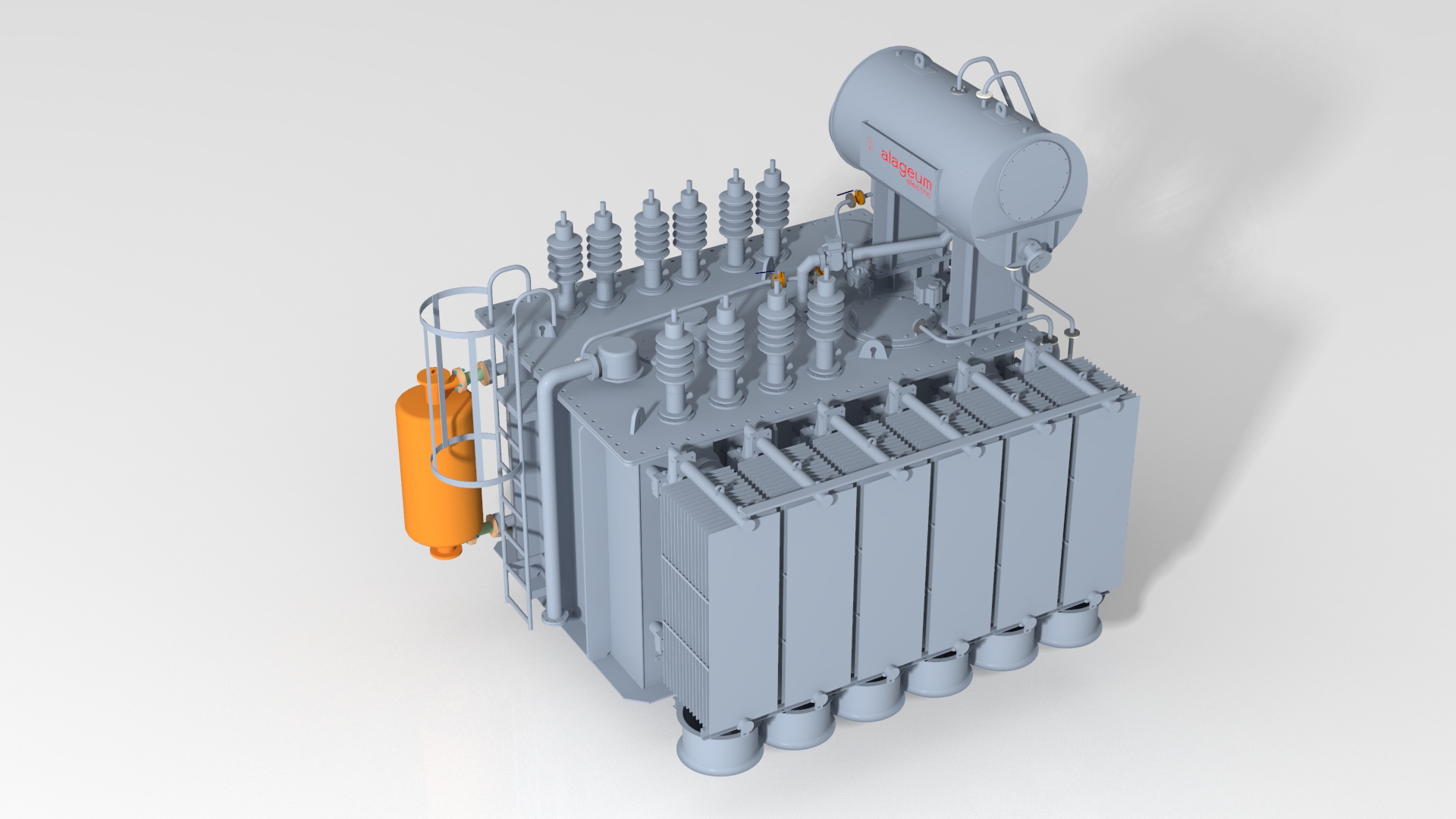

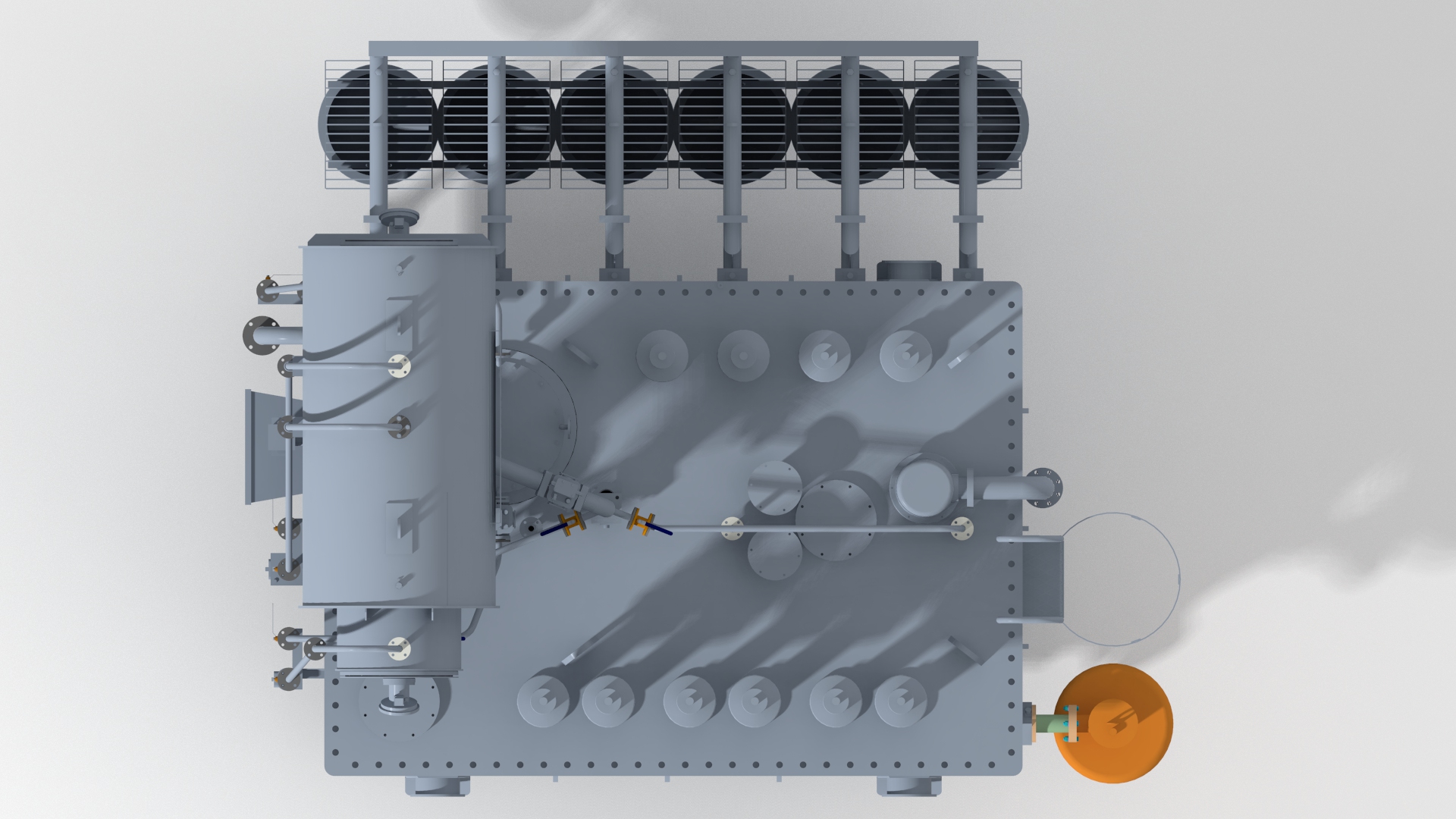

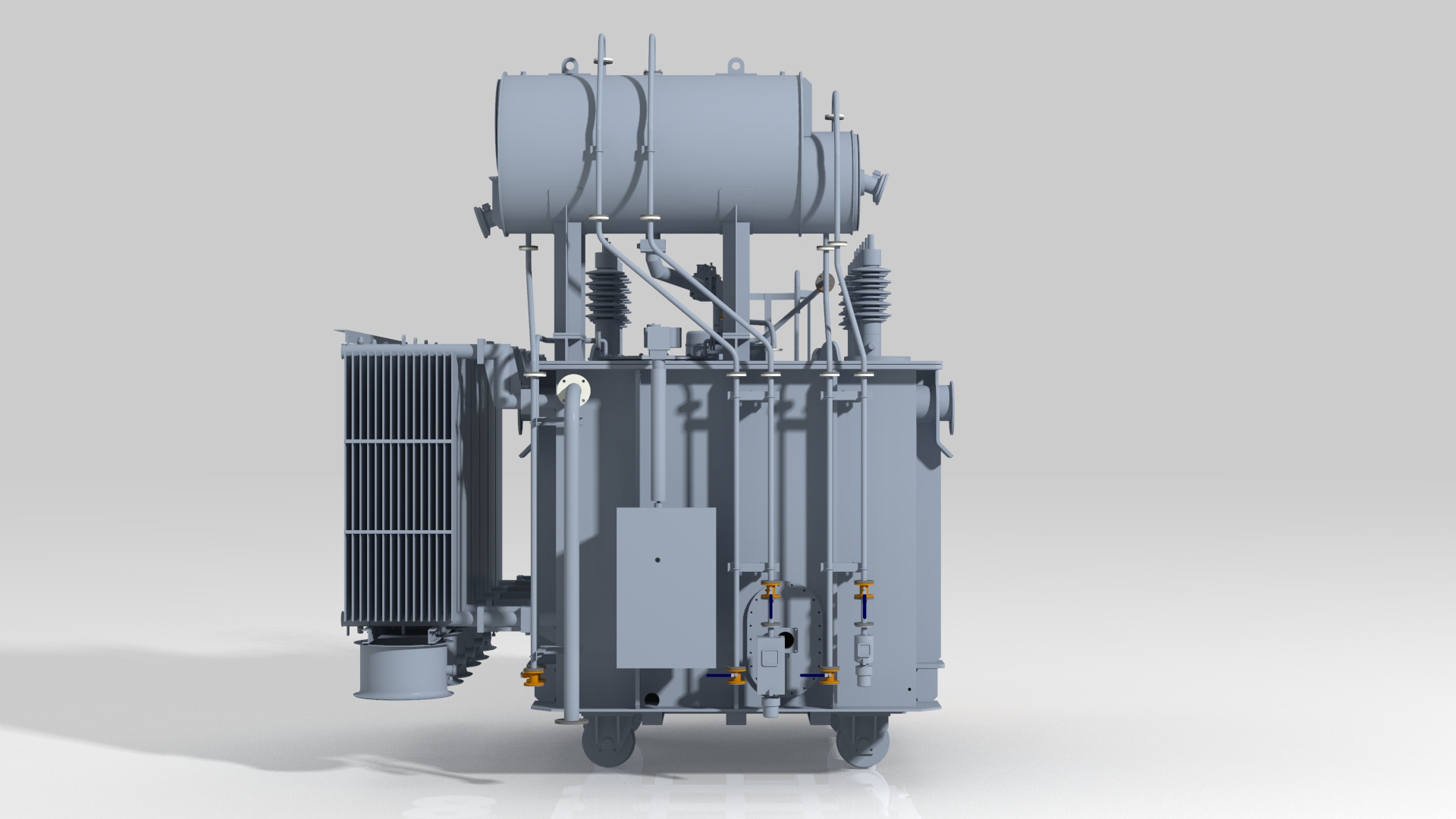

► 3D model view
| Type | Three-phase booster transformer |
| Cooling system | ONAF |
| Rated power, MVA | 63 (transformer throughput) |
| Rated voltage (HV/LV), kV | 38.5/±5.75 |
| Vector group symbols | III/III+Ynauto-0 |
| Voltage regulation, range, No. of steps | OLTC ±10х1,5% |
| Rated frequency, Hz | 50 |
| Special requirements | Reduced no-load losses - 12 kW. Two active part - serias transformer and autotransformer. Enhanced withstand capability for short-circuit currents. |
| Designed for |
|
