Single-phase shunt reactor 60 MVAr 525 kV

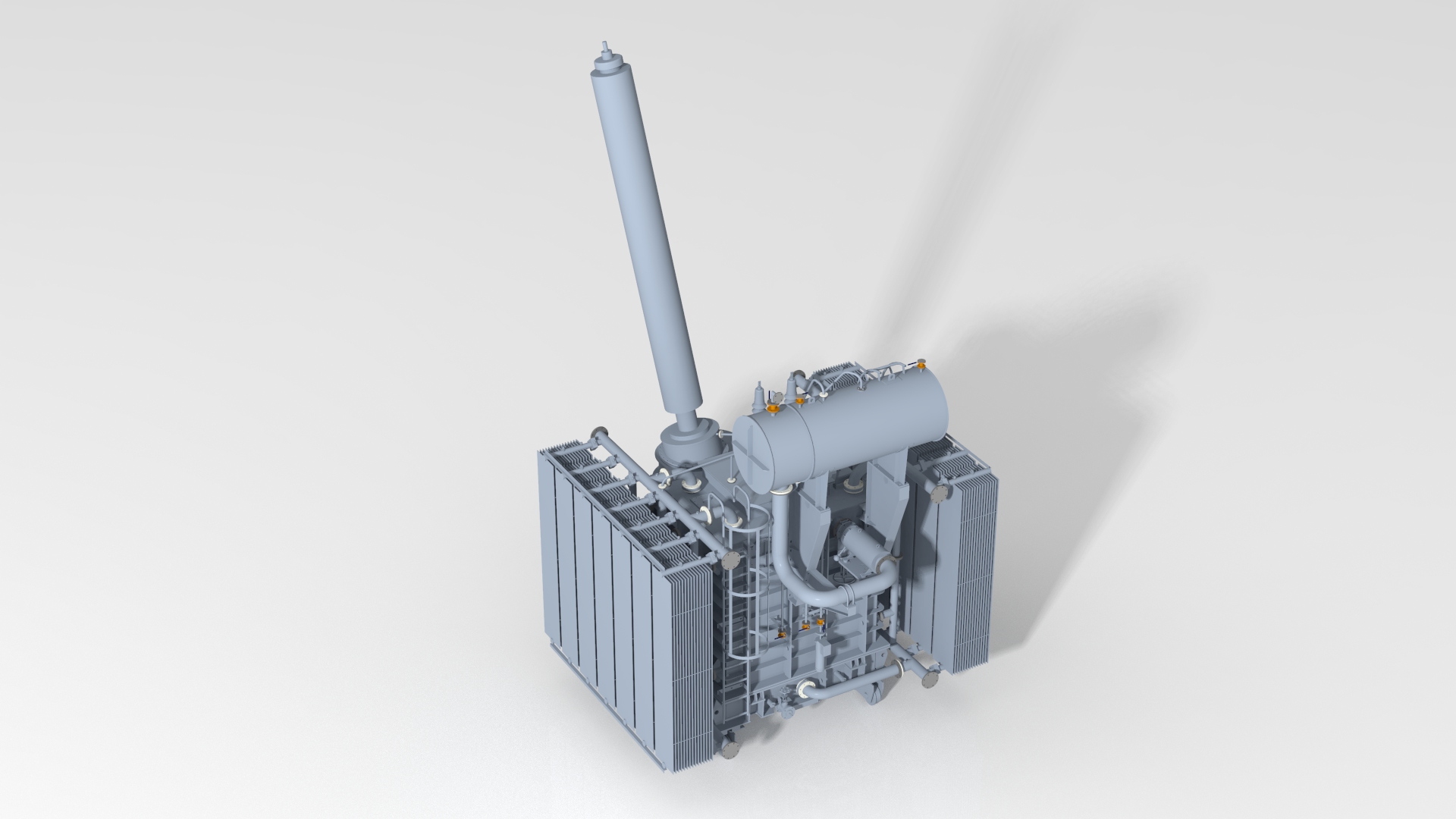

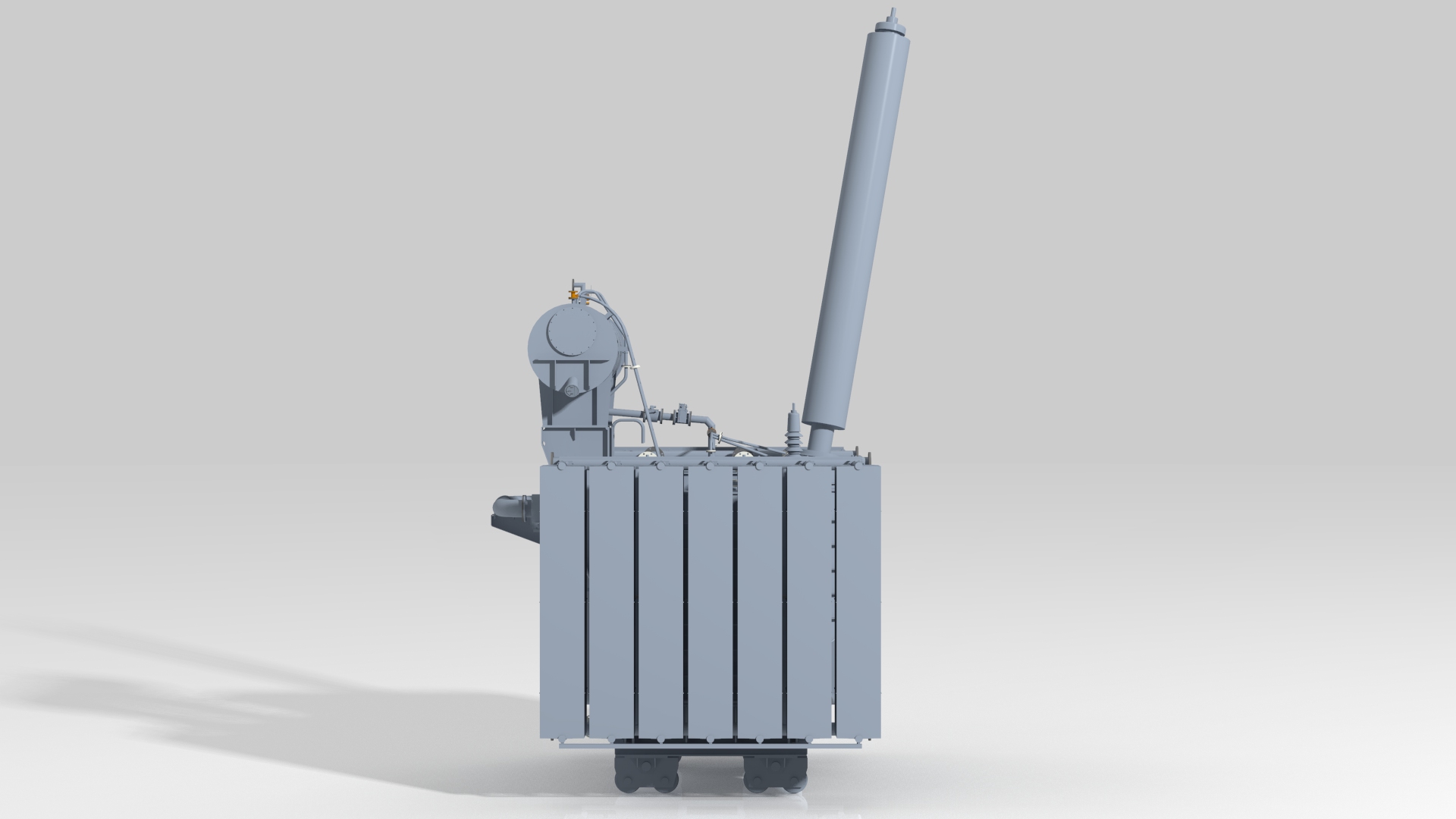

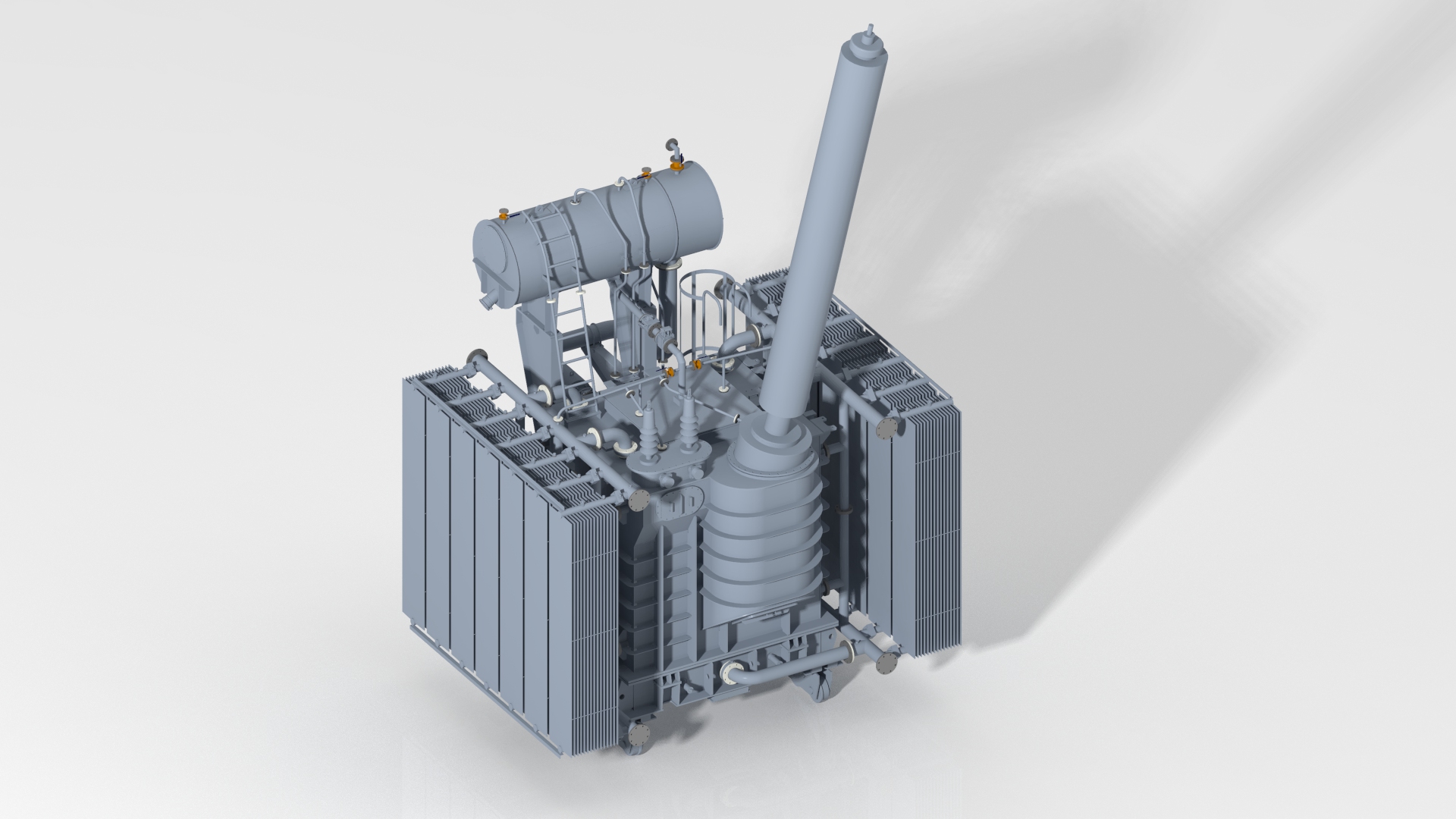

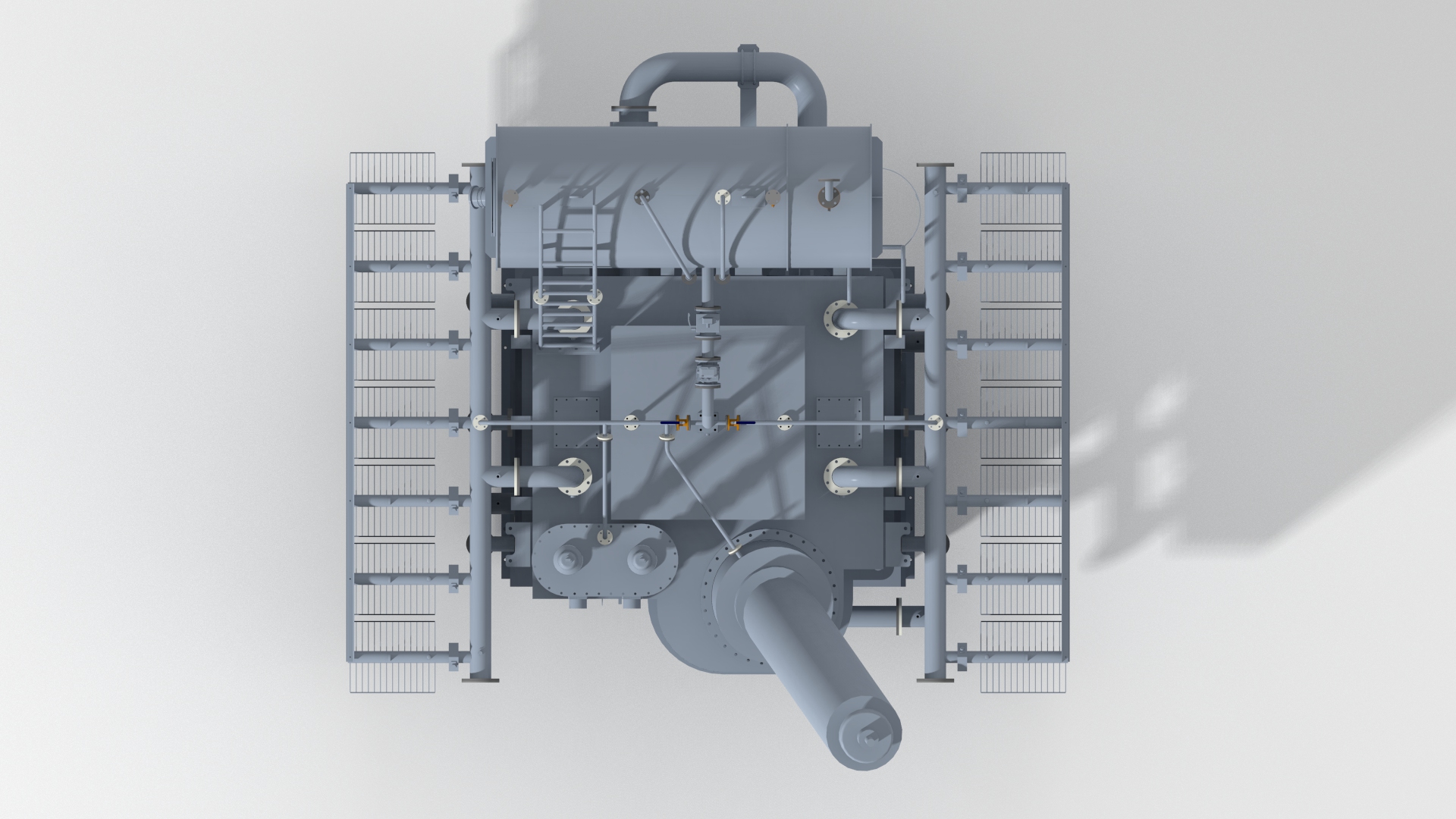

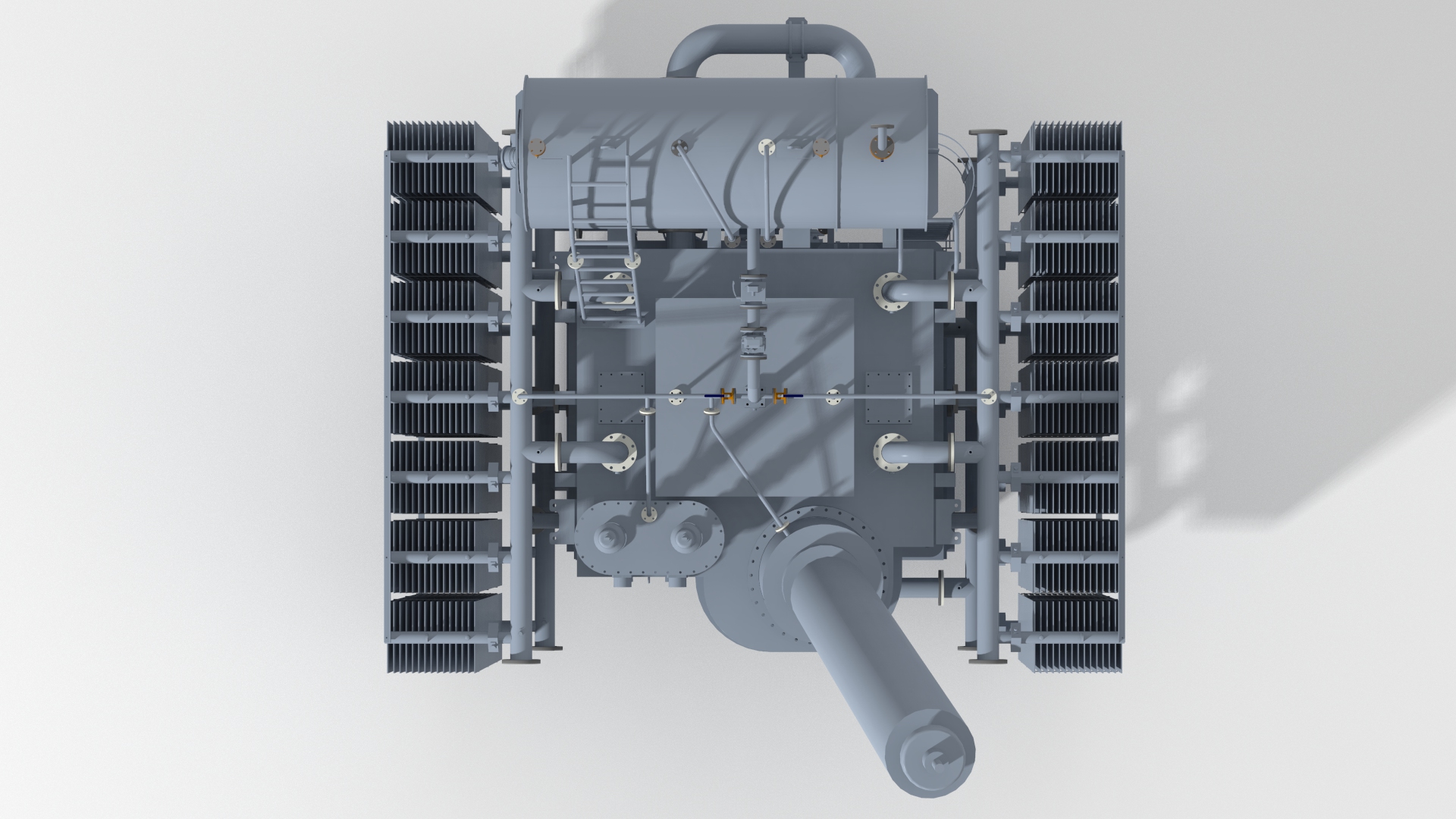

► 3D model view
| Type | Single-phase shunt reactor |
| Cooling system | ONAN |
| Rated power, MVAr | 60 |
| Rated voltage, kV | 525/√3 |
| Vector group symbols | Yn |
| Voltage regulation, range, No. of steps | without regulation |
| Rated frequency, Hz | 50 |
| Special requirements | Losses not more than 138 kW; Seismic intensity 9 by MSK-64 scale |
| Designed for |
|
